Technical Data
Electrical data
| Nominal wattage | 100 W |

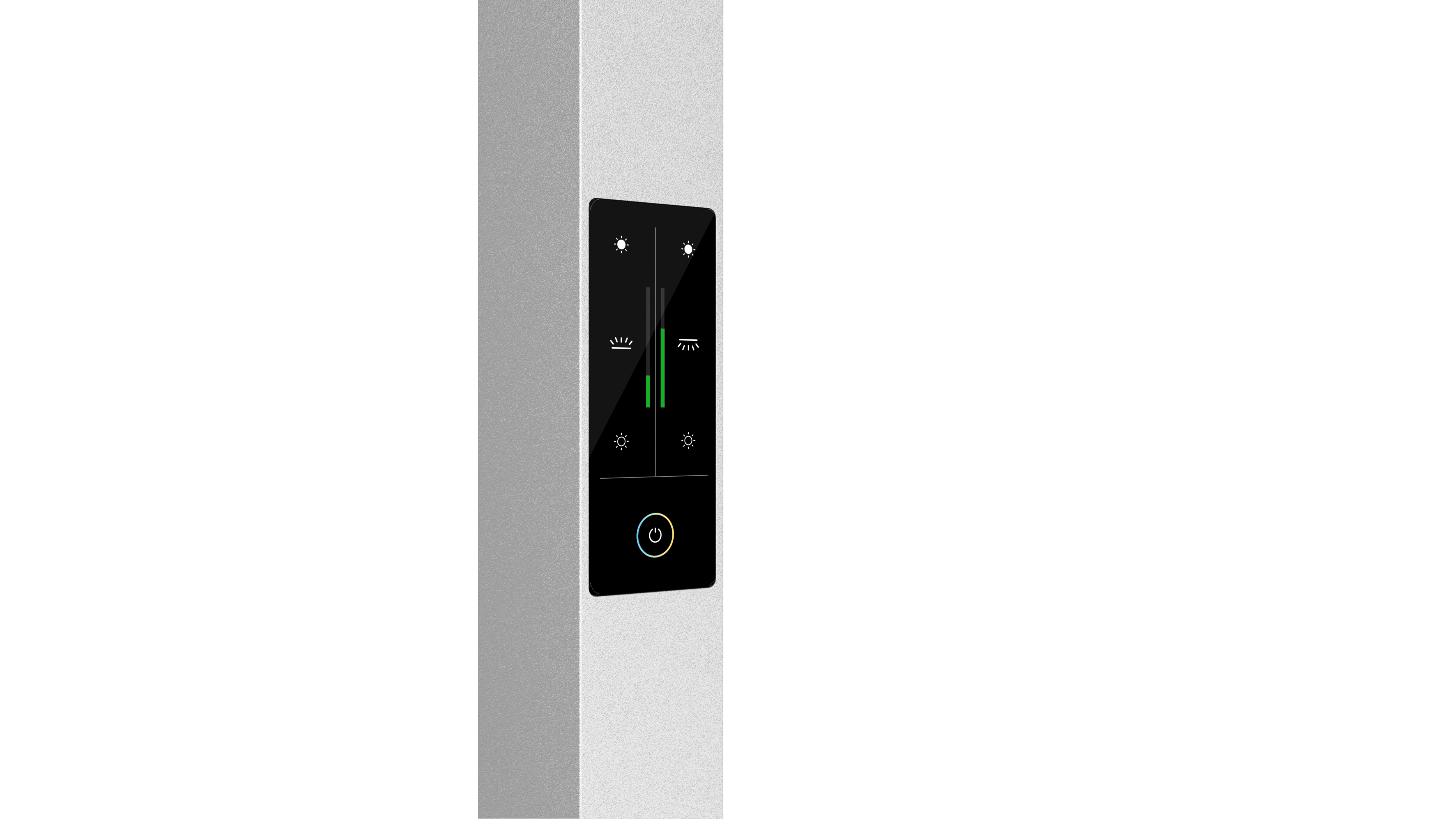

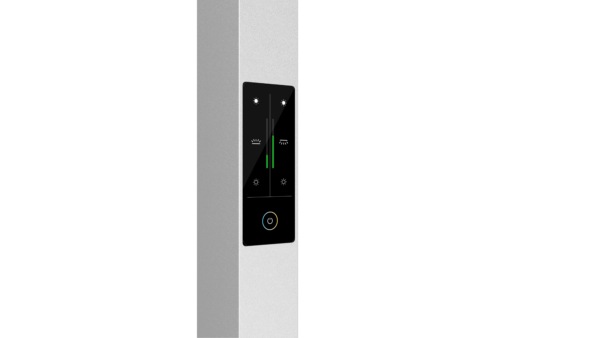

| Operating mode | Power supply unit with DALI touch-switch & dimming interface |
| Nominal voltage | 220…240 V |
| Power factor | >0.95 |
| Mains frequency | 50/60 Hz |
| Inrush current | 65.0 A |
| Inrush current time | 3 ms |
Luminaire control gear data
| Brand | BOKE |
| Dimmable | Yes |
| Control interface | DALI |
Photometrical data
| Color temperature | 4000 K |
| Luminous flux | Direct 1620 lm / Indirect 12380 lm |
| Luminous efficacy | 140 lm/W |
| Standard deviation of color matching | <3 sdcm |
| Light color (designation) | Cool White |
| Color rendering index Ra | >80 |
| UGR | <14 |
Light technical data
| Beam angle | Direct 70 ° / Indirect 100 ° |
Dimensions & weight
| Overall length | 670 mm |
| Overall height | 2000 mm |
| Product weight | 16.900 kg |
Colors & materials
| Housing material | Aluminium |
| Gear tray material | Aluminium |
| Product color | Silver / White / Black |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lifespan L80/B10 at 25 °C | 50000 h |
Capabilities
| Type of connection | Plug, EU/CH/UK |

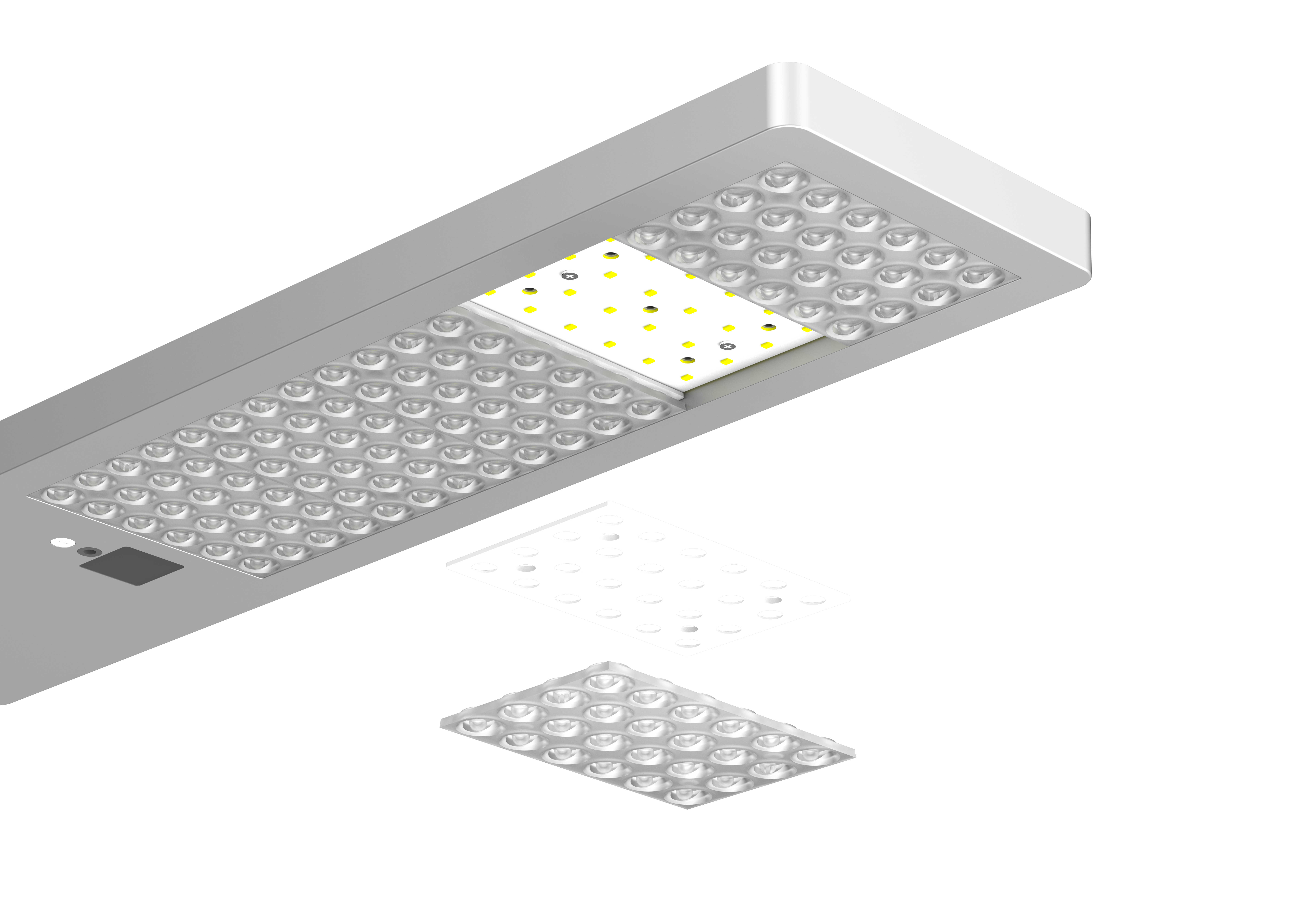

| LED module replaceable | Not replaceable |
| Cable | 2.5 m |
Certificates & standards
| Protection class IK (shock resistance) | IK03 |
| Glow Wire Test according to IEC 695-2-1 | 650 °C |
| Protection class | I |
| Type of protection | IP20 |
| Standards | CE/RoHS |
